How to Transfer the TWS Layout Settings via USB or Network Drive
Overview:
The TWS layout settings can be saved on a USB or Network Drive, in order to import them from the same or from a different computer / TWS session. This article outlines the needed steps.
Please click one of the links below, according to your scenario:
-
Log in the Trader Workstation with the user whose layout settings you would like to export.
-
Click the top menu File > Layout Settings > Save Settings As.
-
Expand the Look In drop-down and select where you want to save the file (e.g. USB or Network Drive). Use a file name which would be easy to identify (e.g. migrate) and click Save. The file will be saved with the extension '.xml'.
-
Proceed with the workflow, starting with step 5 in the following section.
-
Log in the Trader Workstation with the user whose layout settings you would like to export.
-
Click the top menu File > Layout Settings > Save Decrypted Settings As.
-
Take notice of the information about the file format and click Yes.
-
Expand the Look In drop-down and select where you want to save the file (e.g. USB or Network Drive). Use a file name which would be easy to identify (e.g. migrate) and click Save. The file will be saved with the extension '.xml'.
-
Close the TWS and log in again with the user which should import the layout (that can be a different computer).
-
Connect the USB or Network Drive to the computer.
-
Click on the top menu File > Layout Settings > Layout/Settings Recovery.
-
Select Custom... and click OK
-

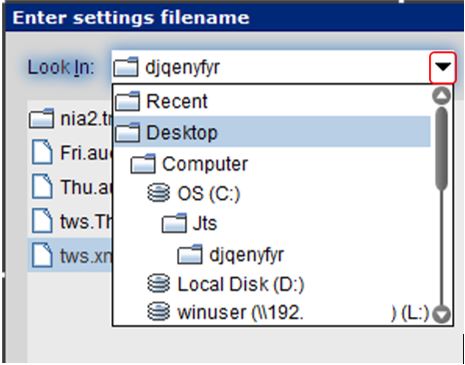

Expand the Look In drop-down and select the drive where you previously saved the TWS settings file (e.g. USB or Network Drive). Select the settings file (e.g. migrate.xml) and click Open.
-
Click Open without reporting problem
-
Your TWS will automatically restart, applying the new layout settings.
